The Architecture of Efficiency: Why Vertical Design Dominates the B2B Market

In the realm of commercial water heating, the Large Volume Vertical Water Heater is not merely a product; it is an engineering response to the challenges of modern infrastructure. The vertical orientation is scientifically superior for large-scale storage because it optimizes the "Thermal Stratification" process. In a vertical column, hot water naturally rises to the top, while the incoming cold water settles at the bottom. Our internal diffusion system ensures that cold water enters the tank with minimal turbulence, preventing it from mixing with the heated upper layer. This allows facility managers to extract up to 90% of the tank's volume at the set temperature, whereas horizontal units often suffer from "thermal dilution," where the water temperature drops significantly after only half the tank is used.

Blue Diamond Enamel Technology: Defeating Corrosion from the Inside Out

The lifespan of a Large Volume Vertical Water Heater is determined by its ability to resist the corrosive nature of pressurized, heated water. At our water heater manufacturing factory, we utilize a specialized "Blue Diamond" enamel coating. This is not a simple paint; it is a glass-silicon fusion that is bonded to the inner steel tank at temperatures exceeding 850°C.

• Molecular Bonding: The high-temperature firing process ensures that the enamel becomes an integral part of the steel, creating a non-porous barrier that prevents water from ever touching the metal core.
• Expansion Compatibility: Our enamel is engineered with a thermal expansion coefficient that matches the steel tank. This means as the tank expands and contracts during heating cycles, the lining remains flexible and crack-free, unlike lower-grade porcelain linings found in residential models.
• Chemical Resistance: Whether dealing with the chlorine found in urban water supplies or the mineral-heavy profiles of rural groundwater, our enamel lining provides a neutral surface that prevents pitting and scaling.

Incoloy 840 Heating Elements: The Heart of the System

Energy transfer is where the ROI of a Large Volume Vertical Water Heater is decided. We equip our units with high-performance Incoloy 840 heating elements. This super-alloy (composed of nickel, iron, and chromium) is specifically designed to resist both carbonization and oxidation at high temperatures.

1. Thermal Conductivity: The high wattage-to-surface-area ratio ensures rapid heat transfer, allowing a 150L tank to reach 65°C significantly faster than standard copper elements.
2. Scale Management: The smooth surface of Incoloy 840 resists the adhesion of calcium deposits, which is the primary cause of element "burn-out" in commercial settings.
3. Replaceable Flange Design: We utilize a heavy-duty bolted flange system rather than a screw-in type, allowing maintenance crews to easily remove the element for inspection without damaging the tank's integrity.

Safety Systems for High-Traffic Infrastructure

When a large-volume vertical water heater is installed in a public facility like a school or a gym, safety is the primary legal and operational concern. Our units feature a multi-redundant safety architecture:

• 0.8 MPa Pressure Management: Every tank is rated for 8 Bar of working pressure, capable of handling the surges of high-head booster pumps. A professional T/P (Temperature and Pressure) valve is included to vent if internal limits are exceeded automatically.
• Digital Thermal Cut-out: In the event of a thermostat failure, an independent mechanical safety switch shuts off all power to the elements if the water temperature exceeds 93°C, preventing steam generation and tank stress.
• ELCB (Earth Leakage Circuit Breaker): Integrated into the power supply, this system detects even a 30mA leakage of electricity and trips the circuit in milliseconds, ensuring total user safety in wet environments.

Procurement Logistics and Installation Best Practices

For B2B buyers and MEP contractors, the installation of a Large Volume Vertical Water Heater must be seamless. We provide reinforced mounting brackets that distribute the weight of 150kg+ (when full) across multiple structural points. The inlet and outlet ports are clearly marked and utilize G 3/4" reinforced brass threads to prevent cross-threading during high-torque plumbing connections.

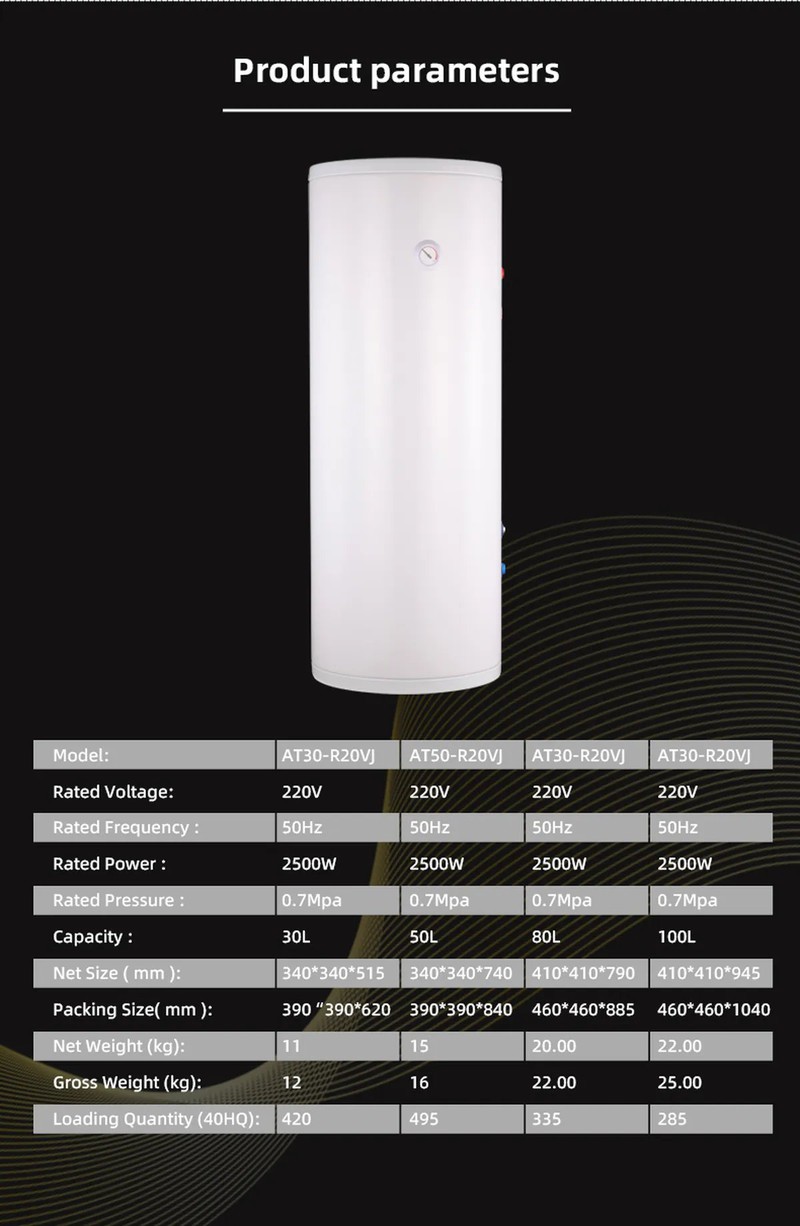

Technical Specifications (Comparison Table)

Deep B2B FAQ: Solving High-Volume Challenges

Q: How does the Large Volume Vertical Water Heater contribute to LEED or Green Building certifications?

A: By utilizing our high-density polyurethane insulation, the standby heat loss is kept below 0.8kWh per 24 hours. This high thermal retention reduces the frequency of the heating cycle, directly lowering the building's carbon footprint and energy expenditure, which is a key metric for green building audits.

Q: Can these units be installed in a modular array for hotel projects?

A: Absolutely. For hotels requiring 1000L+ of storage, we recommend installing the Large Volume Vertical Water Heater in a parallel manifold. This provides redundancy; if one unit requires maintenance, the rest of the system remains operational, ensuring the hotel never suffers a total hot water outage.

Q: What is the benefit of the vertical orientation for water quality?

A: Sediment and heavy minerals naturally settle at the bottom of the tank. In the Large Volume Vertical Water Heater, the outlet is positioned at the very top, ensuring that the water delivered to the taps is the cleanest, most sediment-free water in the system.

Q: Is the tank compatible with hard water treatment systems?

A: Yes. Our enamel is chemically inert. We recommend pairing our heaters with a central water softener for extreme hard water environments to further extend the life of the Incoloy elements.

A Strategic Asset for Your Facility

Selecting the right Large Volume Vertical Water Heater is a decision that impacts your facility's operational budget for the next decade. At Anto, we combine industrial-grade materials with advanced manufacturing techniques to deliver a product that exceeds the demands of the B2B market. From the reinforced steel core to the intelligent safety controls, every component is designed for one goal: reliable, efficient hot water.
